Technical Specifications
| Parameter |
Description |
| Outer Diameter (O.D.) |
5.95" |
| Inner Diameter (I.D.) |
4.138" |
| Overall Length |
38.1" |
| Construction Type |
Double Open End, Optimized Microglass |
| Filtration Efficiency |
3 Micron; Beta 3 = 1000 per ISO 16889 |
| Gasket Material |
Viton |
| Wire Support |
Yes |
| Max Operating Pressure |
160 PSID (Collapse) |
| Max Temperature |
250°F |
| Weight per Filter |
23 lbs |
Our replacement filters are manufactured to these exact specifications, ensuring full compatibility with the original Pall HC8310FKP39H.

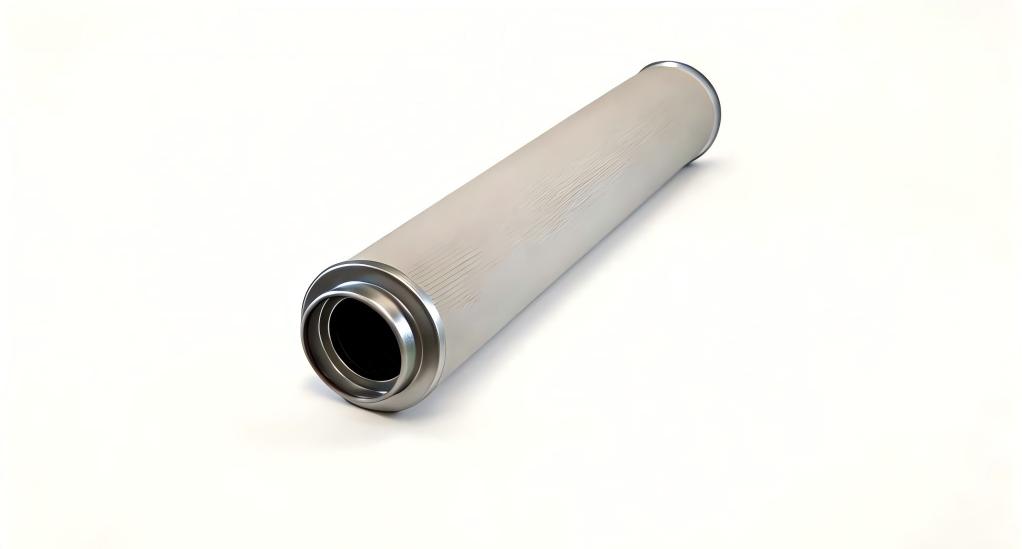

🧠 Pall Hydraulic Filter Element HC8310FKP39H Specifications & Replacement Guide
In industrial hydraulic systems, filter efficiency and reliability directly impact equipment longevity and performance.
The Pall HC8310FKP39H hydraulic filter element delivers high-efficiency 3-micron microglass filtration and robust construction for heavy machinery.
This guide provides key specifications, installation tips, and fully compatible replacement options to reduce downtime, extend filter life, and ensure smooth, uninterrupted system operation.
2. HC8310FKP39H Replacement Guide (Engineering Level)
1️⃣ System Shutdown & Depressurization
- Shut down the hydraulic system completely.
- Release all residual pressure to prevent oil spray hazards.
2️⃣ Filter Removal
- Remove the old filter in reverse of locking/bayonet structure.
- Avoid damaging the filter head sealing surface.
3️⃣ Critical Dimension Verification
- Outer Diameter (O.D.) = 5.95"
- Inner Diameter (I.D.) = 4.138"
- Overall Length = 38.1"
Matching these dimensions ensures 100% physical compatibility.
4️⃣ Installation of Replacement Filter
- Apply a thin layer of hydraulic oil on the Viton gasket.
- Install vertically to avoid eccentric loading.
- Ensure end caps are fully seated and properly engaged.
5️⃣ System Start-Up Test
- Start the system at low pressure for 5–10 minutes.
- Check initial pressure drop (<0.15 MPa).
- Confirm no leaks before normal operation.
3. Compatible Pall Models
- HAC6265FEC13H HAC6265FEE4H HC0101FDT18H HAC6265FEC13Z HAC6265FEE4Z HC0101FDT36H
- HAC6265FEC4H HAC6265FEE8H HC0101FKN18H HAC6265FEC4Z HAC6265FEE8Z HC0101FKN36H
- HAC6265FEC8H HAC6265FEG13H HC0101FKP18H HAC6265FEC8Z HAC6265FEG13Z HC0101FKP36H
- HAC6265FEE13H HC0008FKP11H HC0101FKS18H HAC6265FEE13Z HC008FKP11H HC0101FKS36H
- HC0101FKT18H HC0250FDP10H HC0251FKN10H HC0101FKT36H HC0250FDP10Z HC0251FKN10Z
- HC0162FDP10H HC0250FDP6H HC0251FKP10H HC0162FDS10H HC0250FDP6Z HC0251FKP10Z
- HC0162FDS16H HC0250FDS10H HC0251FKS10H HC0171FKN16H HC0250FDS10Z HC0251FKS10Z
- HC0171FKP16H HC0250FDS6H HC0252FKN10H HC0171FKS16H HC0250FDS6Z HC0252FKN10Z
- HC0252FKP10H HC0600FKP16H HC2196FKN6Z50 HC0252FKP10Z HC0600FKP16Z HC2196FKP4H50
- HC0252FKS10H HC0600FKS16H HC2196FKP4Z50 HC0252FKS10Z HC0600FKS16Z HC2196FKP6H50
- HC0407FKN4H HC0961FKT18H HC2196FKP6Z50 HC0407FKN4Z HC2196FKN4H50 HC2196FKS4H50
We can manufacture replacements for all major Pall hydraulic filter series, fully matching original dimensions, efficiency, and pressure ratings. Contact us.
4. Frequently Asked Questions (FAQ)
Q1: Are the inner diameters exactly the same?
A: Yes, I.D. is 4.138" and Length is 38.1", fully compatible with the original filter.
Q2: Is the filtration efficiency the same as the original?
A: Yes, 3 Micron, Beta 3 = 1000 per ISO 16889.
Q3: What are the maximum pressure and temperature ratings?
A: Maximum pressure 160 PSID; maximum operating temperature 250°F.
Q4: Can custom materials or gaskets be provided?
A: Yes, Viton gasket is standard, and alternative materials can be supplied per customer requirements.
5. Summary
The Pall HC8310FKP39H is a high-performance industrial hydraulic filter.
We offer fully compatible replacement filters, covering all major Pall series:
-
O.D. 5.95" / I.D. 4.138" / Length 38.1"
-
Double Open End construction with optimized microglass media
-
3 Micron filtration, Beta 3 = 1000 per ISO 16889
-
High-pressure durability up to 160 PSID, maximum temperature 250°F
Direct replacement ensures your hydraulic system operates efficiently and reliably.
